PebblePower Switching Devices
PebblePower devices are all based on the same core ESP32 and so please refer to the PebblePower Common Specs for features and specifications that are common across the PebblePower range HERE
PebblePower
1
Single channel switching with realtime power monitoring. VIN in powers the board and the channel making this board unique in the range. I2C and GPIO are available for connecting sensors and other inputs as well as having onboard Channel and Func buttons which are programmable. Theres also CANBUS and voltage supply out selectable as either 5v or based on the VIN
| VIN | 5v to 25v |
| Channels | 1 @ 10A |
| Onboard Buttons | 2 |
| External GPIO's | 2 |
Specifications Sheet
PebblePower
2
Dual channel switching with realtime power monitoring of each channel. Board and Channel power is isolated supporting 20A total switching. I2C and GPIO are available for connecting sensors and other inputs as well as having onboard Channel and Func buttons which are programmable. Theres also CANBUS and voltage supply out at either 5v or based on the VIN
| VIN | 5v to 25v |
| Channels | 2 @ 10A |
| Onboard Buttons | 3 |
| External GPIO's | 3 |
Specifications Sheet

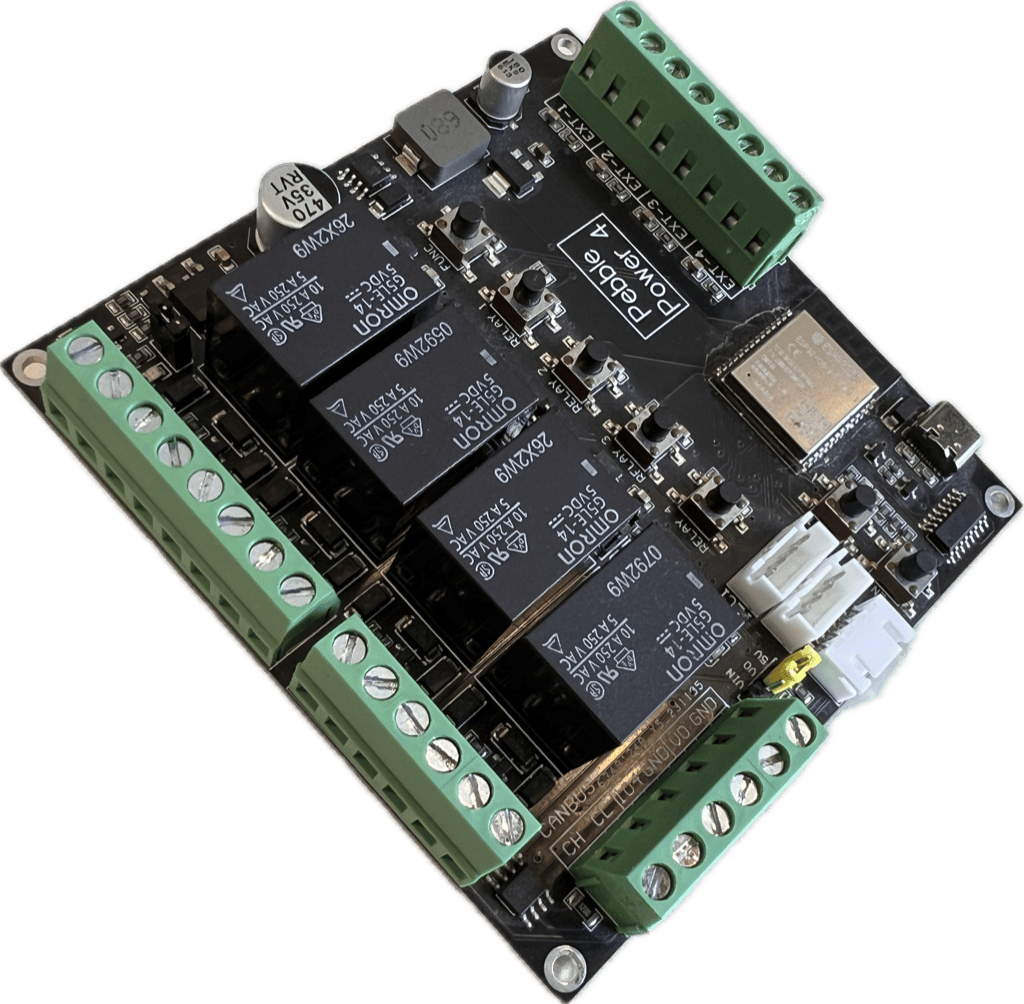

PebblePower
4
Quad channel switching with realtime power monitoring of each channel. Board and Channel power is isolated supporting 40A total switching. I2C and GPIO are available for connecting sensors and other inputs as well as having onboard Channel and Func buttons which are programmable. Theres also CANBUS and voltage supply out at either 5v or based on the VIN
| VIN | 5v to 25v |
| Channels | 4 @ 10A |
| Onboard Buttons | 5 |
| External GPIO's | 5 |
Specification Sheet
For more information and documentation, please visit our documentation site at https://docs.pebbletek.ai
To discuss pricing and availability contact use below using the button below.
